Historic Streetcars in San Francisco

No. 130

San Francisco Municipal Railway (1940s)

Built 1914 • Awaiting Restoration

This car was one of Muni’s workhorses for 44 years, but is lucky to be here today. Built in 1914, part of an order of 125 cars to expand Muni service for the Panama-Pacific International Exposition in the Marina District, No. 130 operated on almost every Muni streetcar line during its initial career.

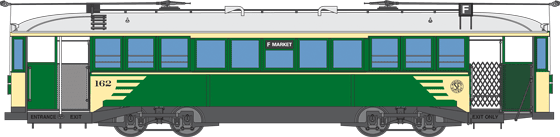

Trams 130 & 162.Twin 1914 streetcars 162 & 130. David Dugan photo.

Car No. 130 was among the the last ‘Iron Monsters’ to leave passenger service, in 1958. Muni shop foreman Charlie Smallwood saved it from the scrap heap by hiding it in the back of Geneva carhouse while its mates met their fates. He then talked his bosses into making it a ‘wrecker’. Stripped bare and painted yellow, it spent the next 25 years towing its replacements–PCC streetcars–back to the barn when they broke down. It was fully restored by Muni craft workers in 1983 for the Historic Trolley Festival, including original seats, which Charlie had kept all those years in his basement…just in case!

1914

Built for Muni in Ohio by Jewett Car Company.

1914-1958

Used in regular service on virtually every Muni streetcar line. Painted in all three Muni liveries used during its service life, including the green and cream ‘Wings’ in the 1950s.

1958

Retired from daily service. Seats removed, equipment installed to allow car to serve as Geneva Division wrecker. Only two of the 125 cars of this type survive. Market Street Railway acquired car No. 162 from Orange Empire Railway Museum in Southern California in 2002 and gifted it to Muni.

1983

Restored by Muni craftsworkers to 1939 appearance, with blue and gold “Treasure Island” livery, to participate in San Francisco Historic Trolley Festival.

1984-1987

Operated summers in subsequent Trolley Festivals.

1995

Begins serving F-Market line, built as result of successful Trolley Festivals.

2000

Begins serving F-line extension on Embarcadero to Fisherman’s Wharf.

2002

No. 130 dedicated to famed San Francisco newspaper columnist Herb Caen.

2016

Car sidelined with some electrical problems, understandable after 102 years of service with its original wiring.

2018

Muni commits to fully rebuilding Car 130 in-house, as soon as truck repairs are completed for Car 162.

130 - San Francisco Municipal Railway (1940s)**Built For**
San Francisco Municipal Railway, San Francisco CA, 1914
**Builder**
Jewett Car Co., Ohio
**Seats**
50
**Weight**
48,000 lb. (21,800 kg)
**Length**
47′ 1″ (14.4m)
**Width**
9′ 2″ (2.8m)
**Height**
12′ 3″ (3.7m)
**Motors**
4 Westinghouse 532A
**Control**
Westinghouse HL
**Trucks**
Baldwin L-plate
**Brakes**
Westinghouse SME Air
